Truck

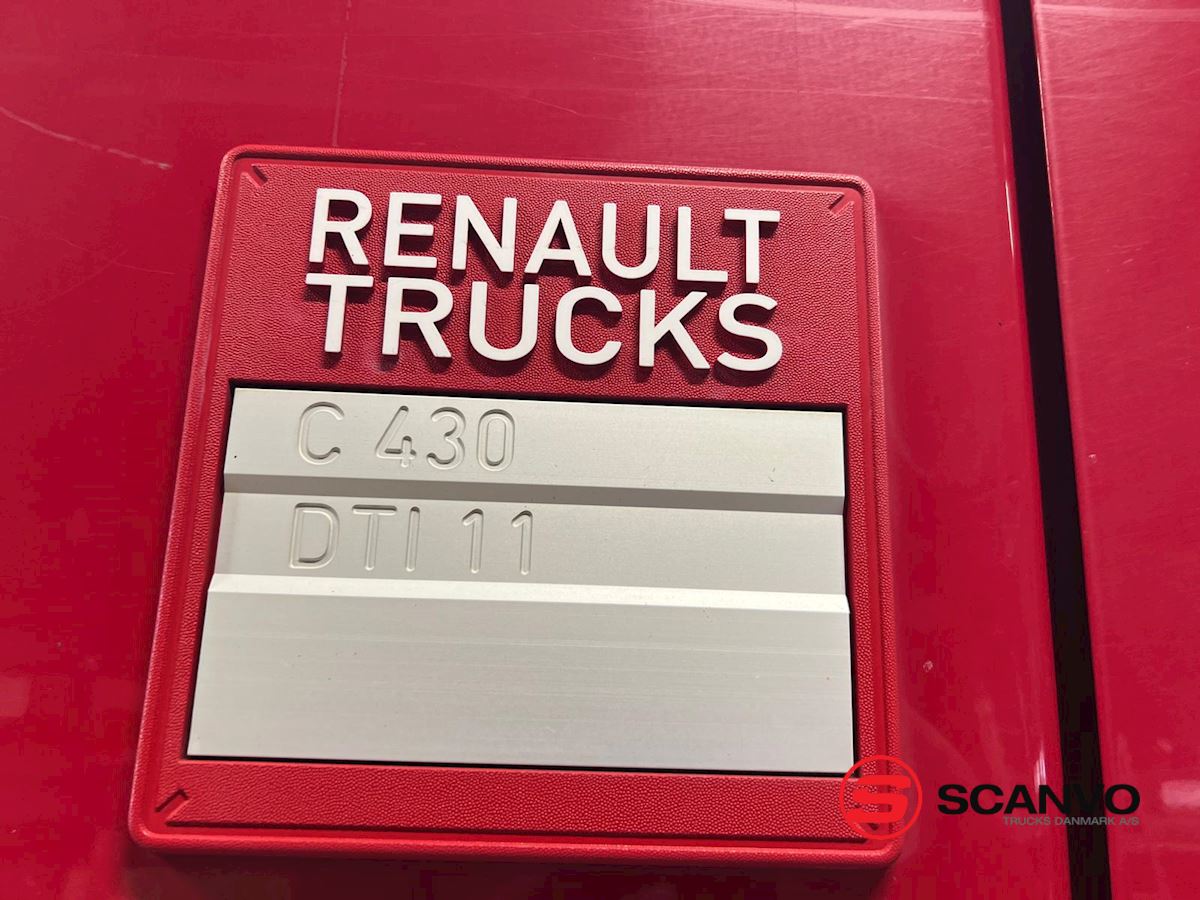

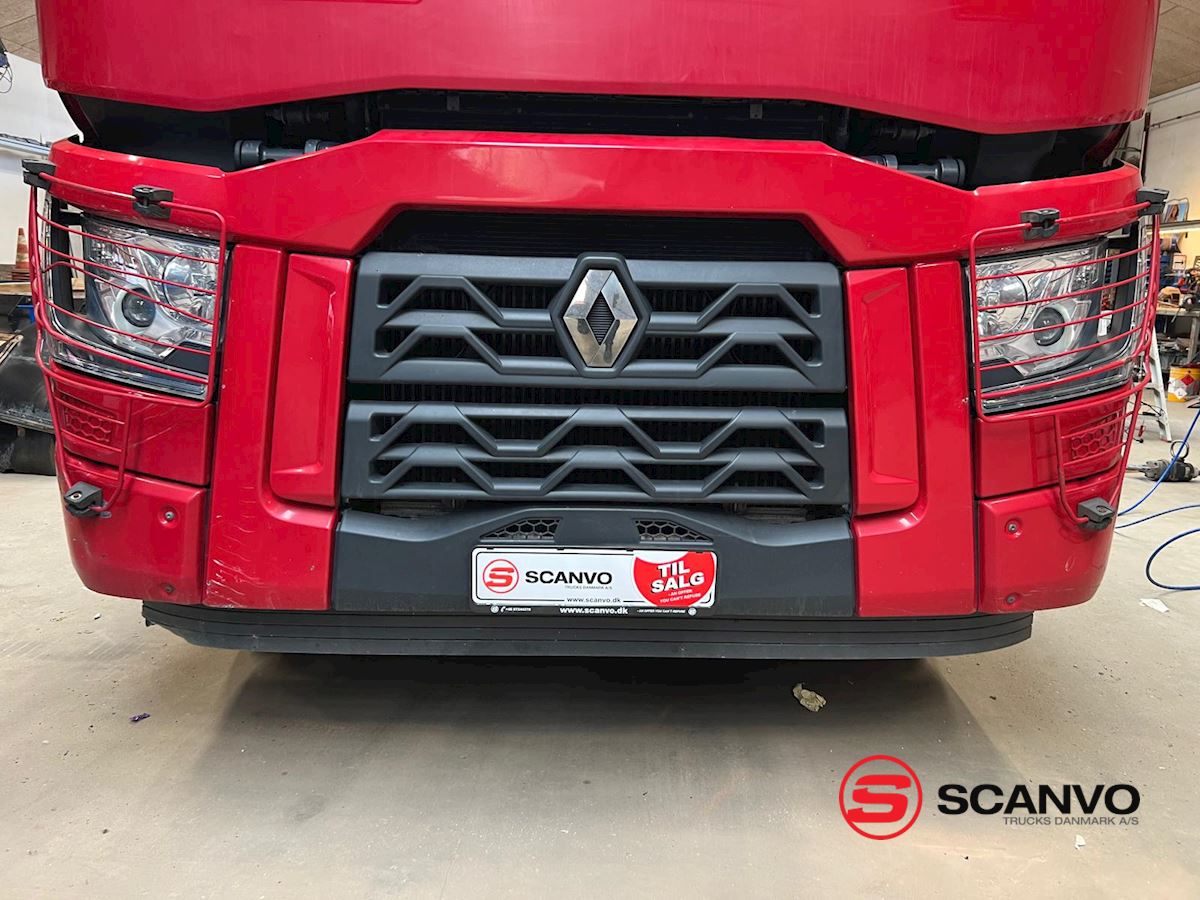

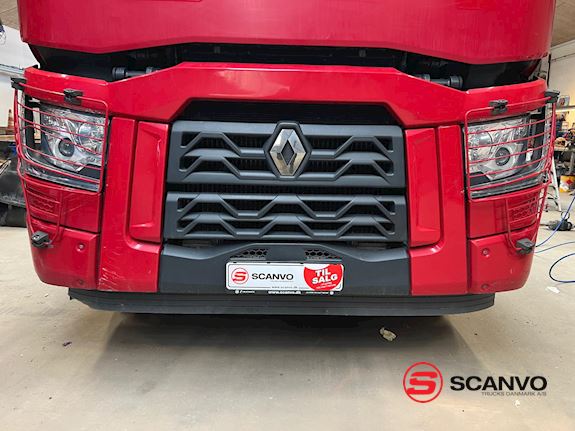

Renault CM 430 Haken
Basic
Type
Truck
Brand
Renault
Model
CM 430
Build-up
Haken
Axle
8x2*6
Condition
As new
Registration
Model year
2020
Reg. date
21-08-2020
Reg. no.
CT82459
Latest inspection
07-01-2025
Chassis number (VIN)
VF630V165LD000384
Ref. no.
7776
Engine and transmission
PTO engine
Engine
DTI11 430 EUVI
Km
149,000
Hp
430
EURO type
6
Rear axle, single interchange
Gear box
Optidriver aut shift
Without clutch pedal
Number of tanks
1
Adblue litre of tank
ca 65
Litre of tank
ca 300
Cab
Leather seats
Number of sleeper berths
1
Automatic air conditioning
Rear-view camera
Cab type
sleepercab C-2,5m
Air in cabin for cleaning
Navigation
Radio
Walkie
Fahrhaus ausen
Blitz lights
Color
RAL 3003
Lightbox
Warninglight
Chassis
Steerable axle
Wheelbase mm
4355
Axle load, front kg
18000
Axle load, rear kg
19000
Hydraulic installation
Hydraulically steered rear axle
Total length mm
8400
Liftable axles
4.
Toolbox
Tyres
% remaining
30/30 - 50/80 - 90/90 - 70/50
Dimensions
315/80R22,5
Brakes
Disc brake
ABS
Coupling
Electrical coupling
EBS + 13 polet lysstik
Air-coupling
duromatic
Manufacturer
VBG 720
Coupling height mm
870
V "KN air"
63
Suspension
Front, parable
Rear, air
Weight
Overall weight kg
32,000
Tare weight kg
12,880
Hook lift
Load capacity
20
Last inspection
x

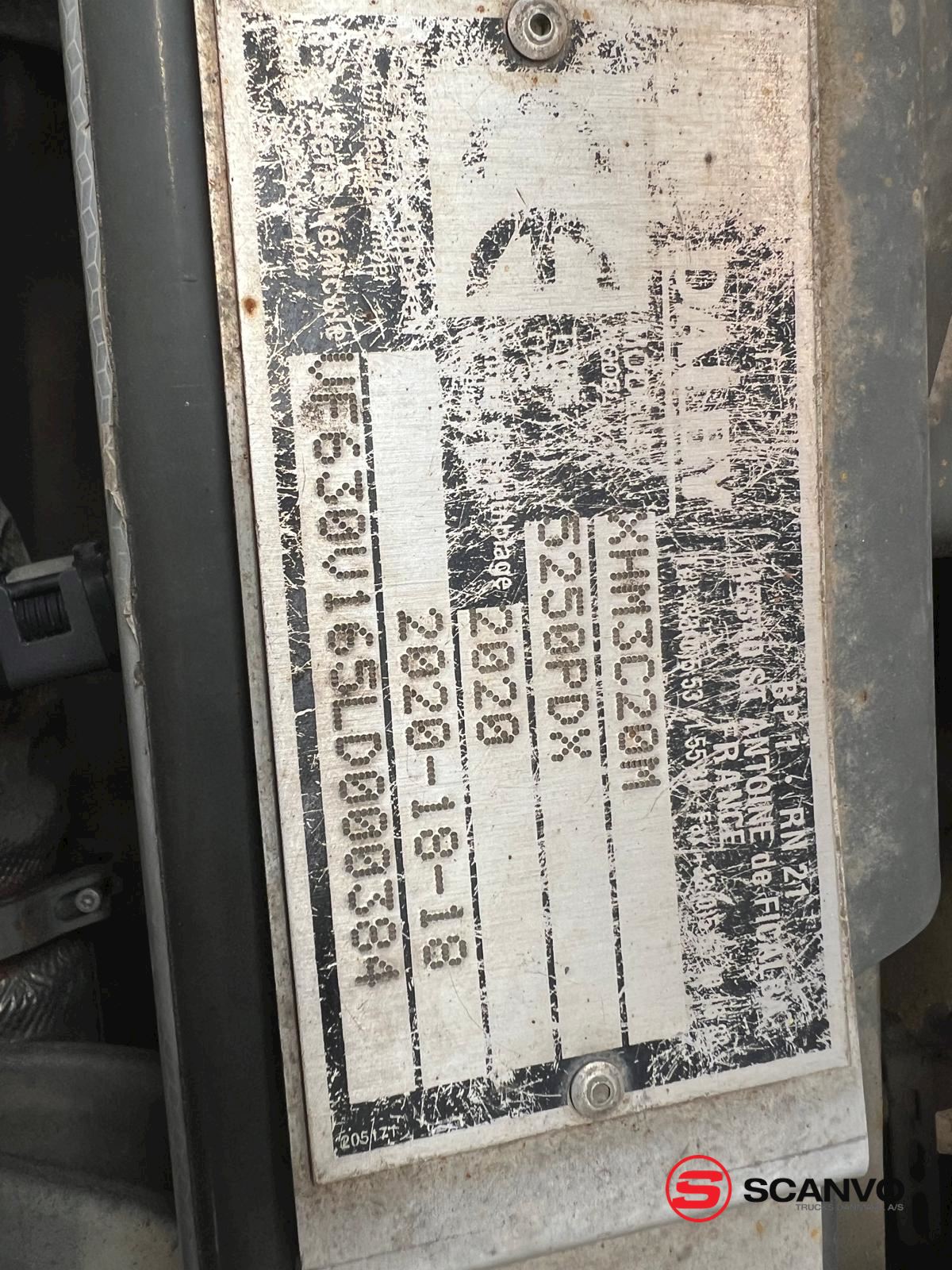

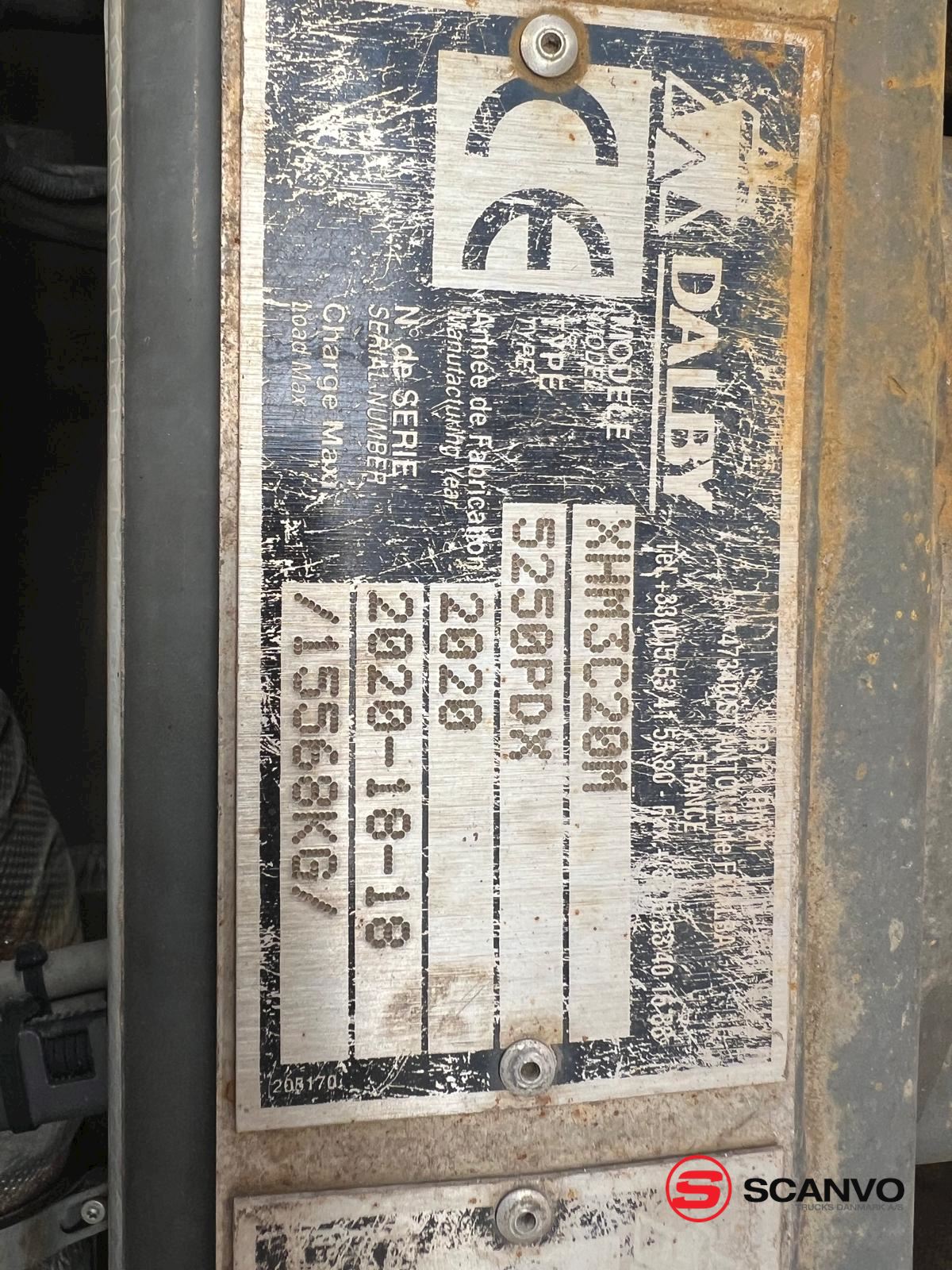

Make
DALBY
Type
XHM3C20M
Serial number
5250PDX
Model year
2020
Max container messure mm
6300 + ca 600 mm udskudskofanger
Articulated get hook lift
Description
Renault CM 430 HK 8x2*6 high-mounted chassis with good ground clearance
DALBY hooklift 20 ton with articulated arm - 5300 mm from center hook to center rollers in back + 300 mm to rear bumper - can drive with max 6300 mm container can be increased by using extension bumper with approx. 600 mm - transverse toolbox behind cab
Hook arm can be driven approx. 1000 mm back - height of top edge of container rollers 1300 mm
2-way oil routed to the rear for tipping - VBG 795 trailer/trailer hitch with air control - coupling height 870 mm - coupling length 8400 mm
Hydraulic steering/lifting bogie axle - Euro 6 - Optidriver aut gearshift - parabolic suspension front - air rear - 4550 mm axle distance
Sleeper cabin cabin with low roof - 1 berth - leather seats - air conditioning - light sign on the roof - work light behind the cab
2 x LED lights in the rear + step box - camera when towing - 2 pcs. rotating beacon - walkie - radio - etc. RAL 3003 factory painted cab
Service oil change at 146,000 km on 1/12-2024
